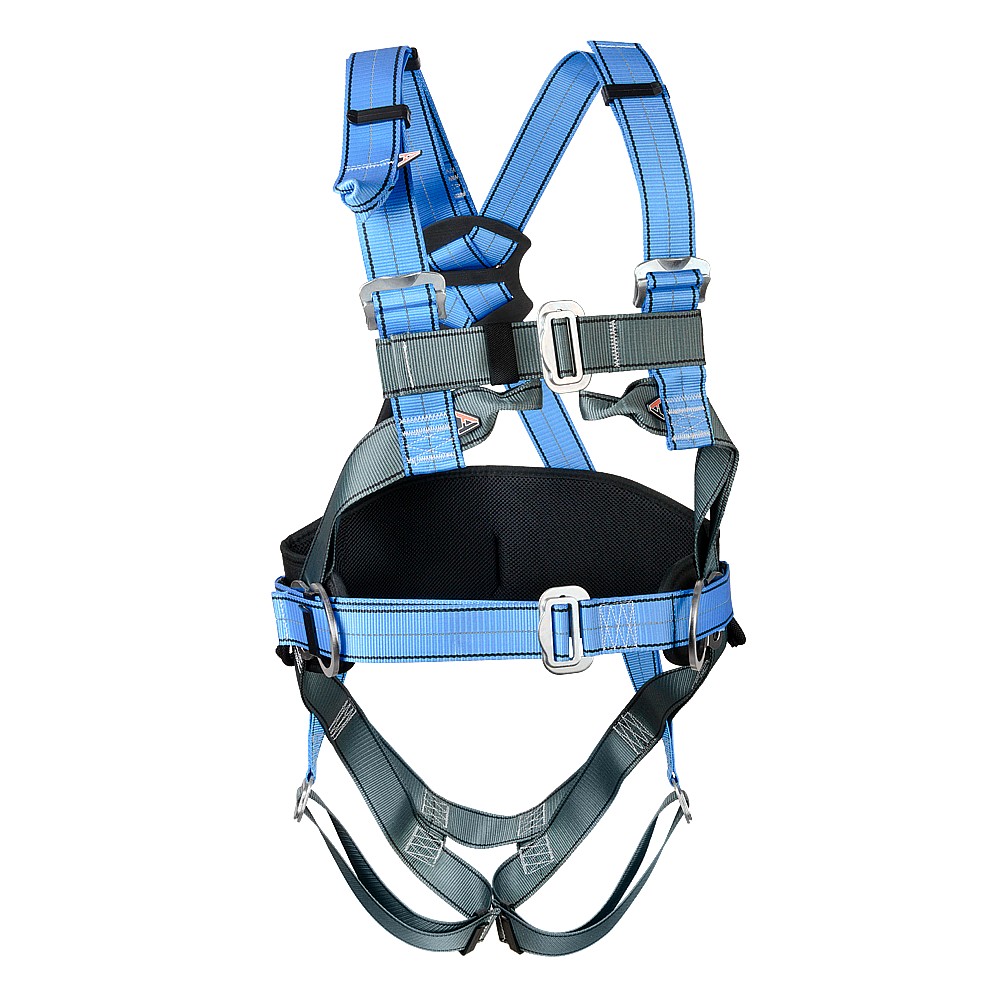

HS-50 BAZIS fall arrest harness is a component of the safety system for ensuring the safety of work at height.
The harness is intended:
- to safely stop a fall and reduce the severity of consequences after a user’s fall, as a component of restraint and positioning system;
- for worker’s positioning to prevent a fall from height.
The harness has three attachment points: front (on the chest) and two back (a D-ring on the back and an extension strap) for attaching to the fall protection system. It also has two side attachment points (curved D-rings) on the waist belt for working in support (when positioning).
- To identify the top and bottom of the harness, the webbing has different colors (blue with a retroreflective tape, gray).
- The extension strap is attached with a plastic buckle (a loop) without using a Velcro fastener. The straps are also fixed with plastic buckles, this allows you keep to free ends of the webbing out of the way.
- X-shaped pad on the back, prevents the shoulder straps from shifting and strangling the user in the event of a fall.
- Marking of attachment points with external labels made of molded PVC. Identification information is placed in a water-repellent booklet which includes data on the product, user, a way of donning and time of inspection. The booklet has a holder case.
- Wide ergonomic waistbelt made of breathable material.
Fall indicators are on the shoulder straps.
Waistbelt loops for tools.
Connecting and adjustment buckles: galvanized steel.
D-rings: galvanized steel.
Õ-pad: rubberized PU leather.
Size: 1.
Hip circumference: 50–85 cm.
Waist circumference: 90–130 cm.
Webbing: polyester, width: 45 mm.
The operation range of temperature: from -60 °Ñ to +50 °Ñ.
Weight: 1.6 kg.
TR CU 019/2011
